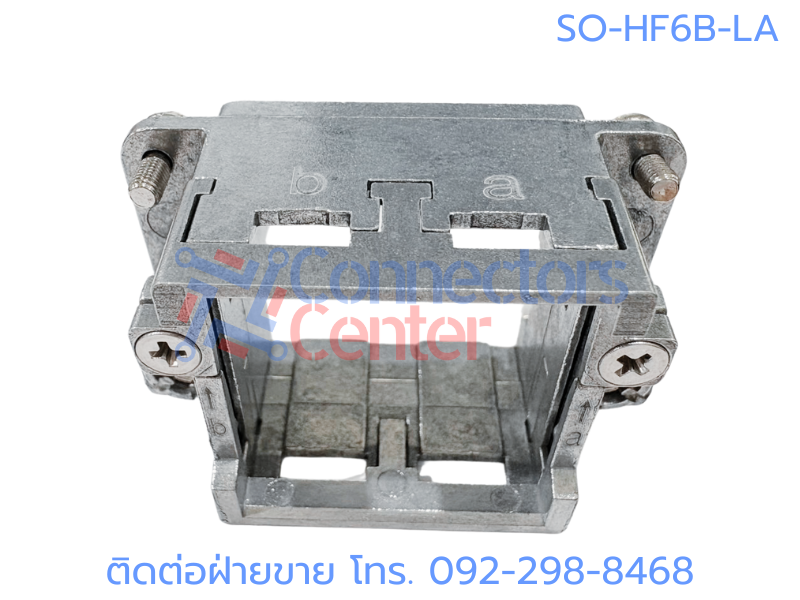

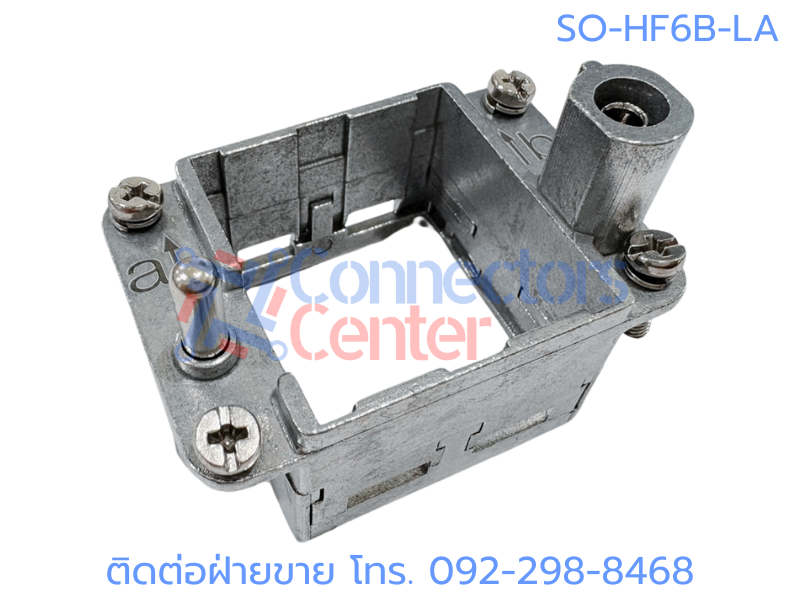

Hinged Frame Modular
หมวดหมู่สินค้า: Accessories
รหัส : SO-HF6B-LA
Modular Hinged Frame PLUS Connectors
27 กันยายน 2566
ผู้ชม 156 ผู้ชม
SMICO SO-HF6B-LA
Part : SO-HF6B-NLA3
Order No.:09140060313
Product Certification:UL CUL CE ROHS DMT IEC-61984
Pre -leading grounding system according VDE. Modular can only
be assembled polarized. Alphabetical marking of module position.
High mechanical reliability of modules in case of vibration and impact stress.
No tools necessary to remove modules. Hinged frames can be used either in hood or housing.
| Number of modules | 2 |
| PE contact(Wire gauge) | |
| －Power side | 4-10mm2 |
| AWG12-8 | |
| －Signal side | 1-2.5mm2 |
| 18-14 | |
| Material | zinc die-cast |
| Limiting temperatures | -40℃...+125℃ |
| Mechanical working life(mating cycles) | ≥500 |
